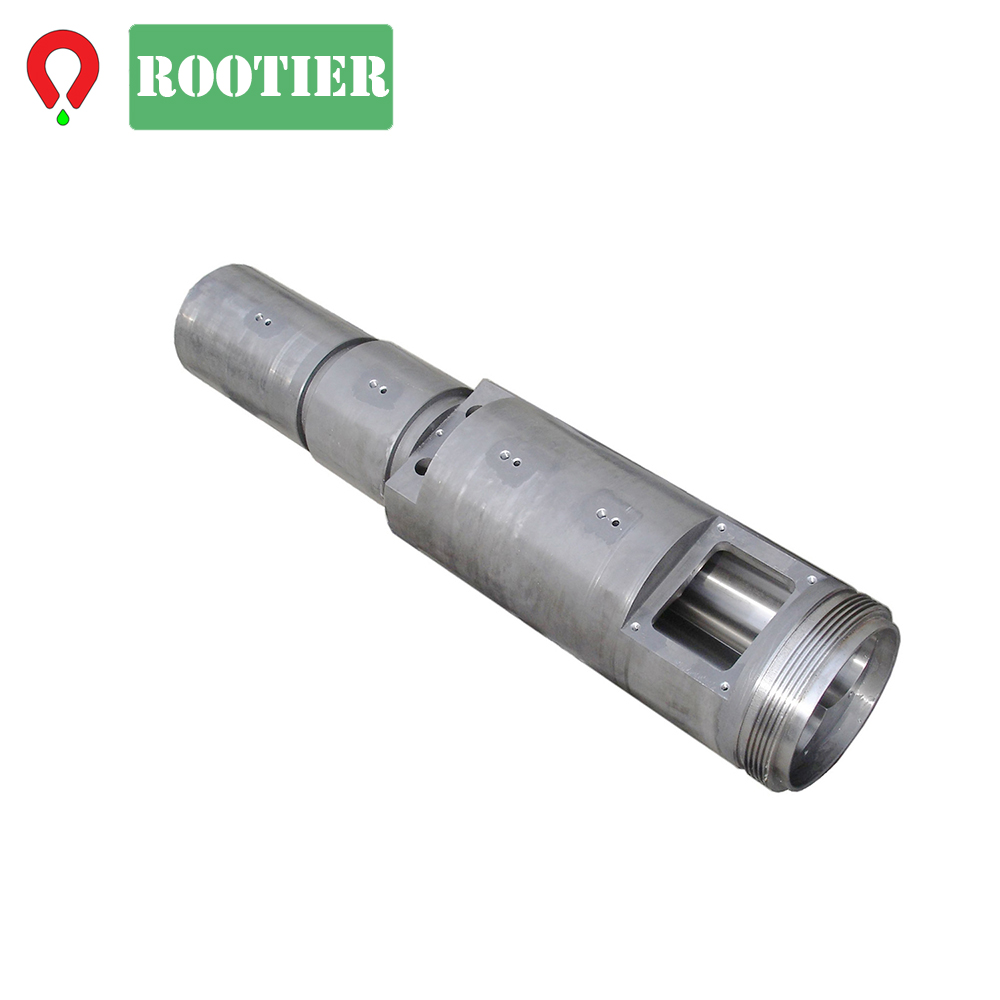

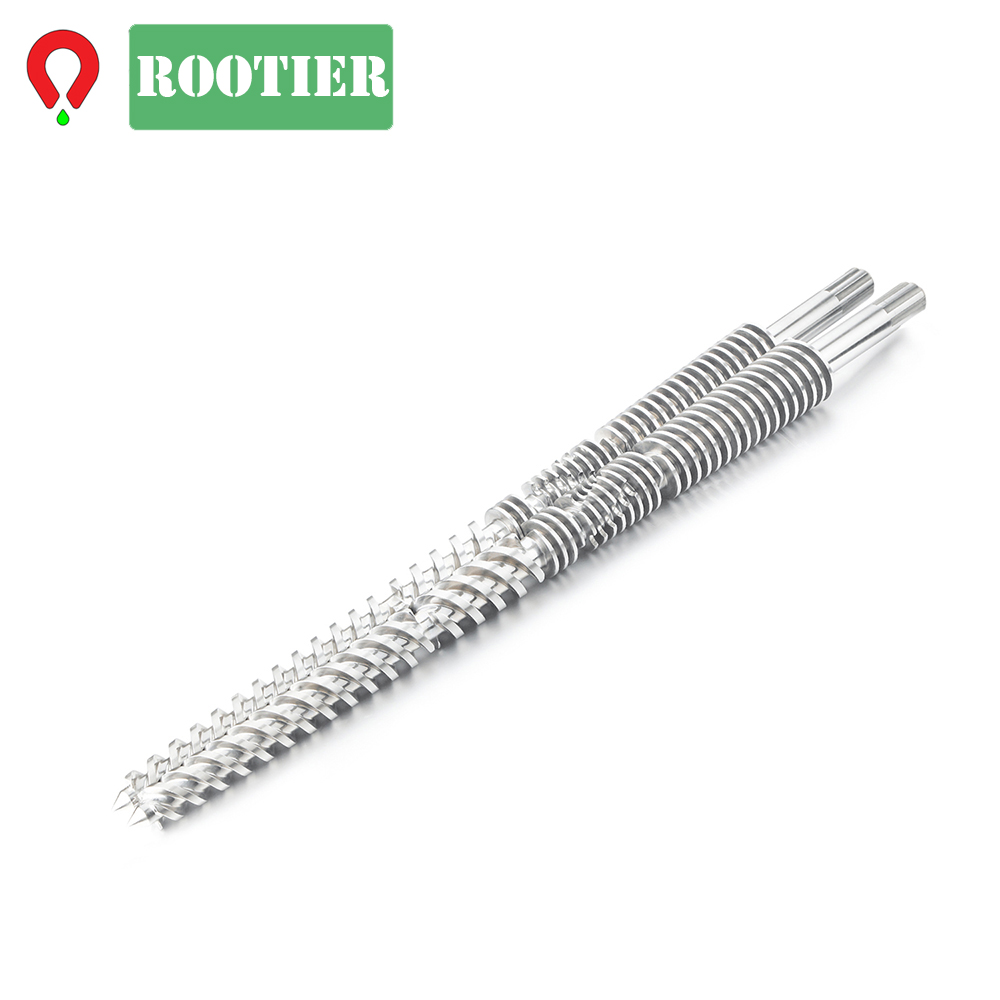

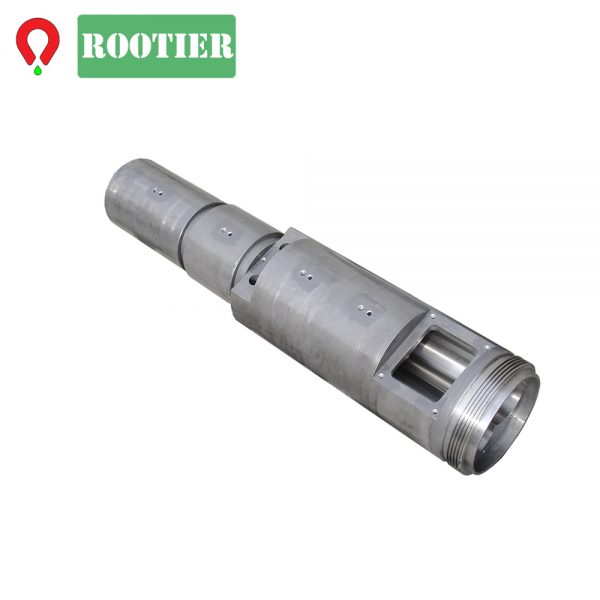

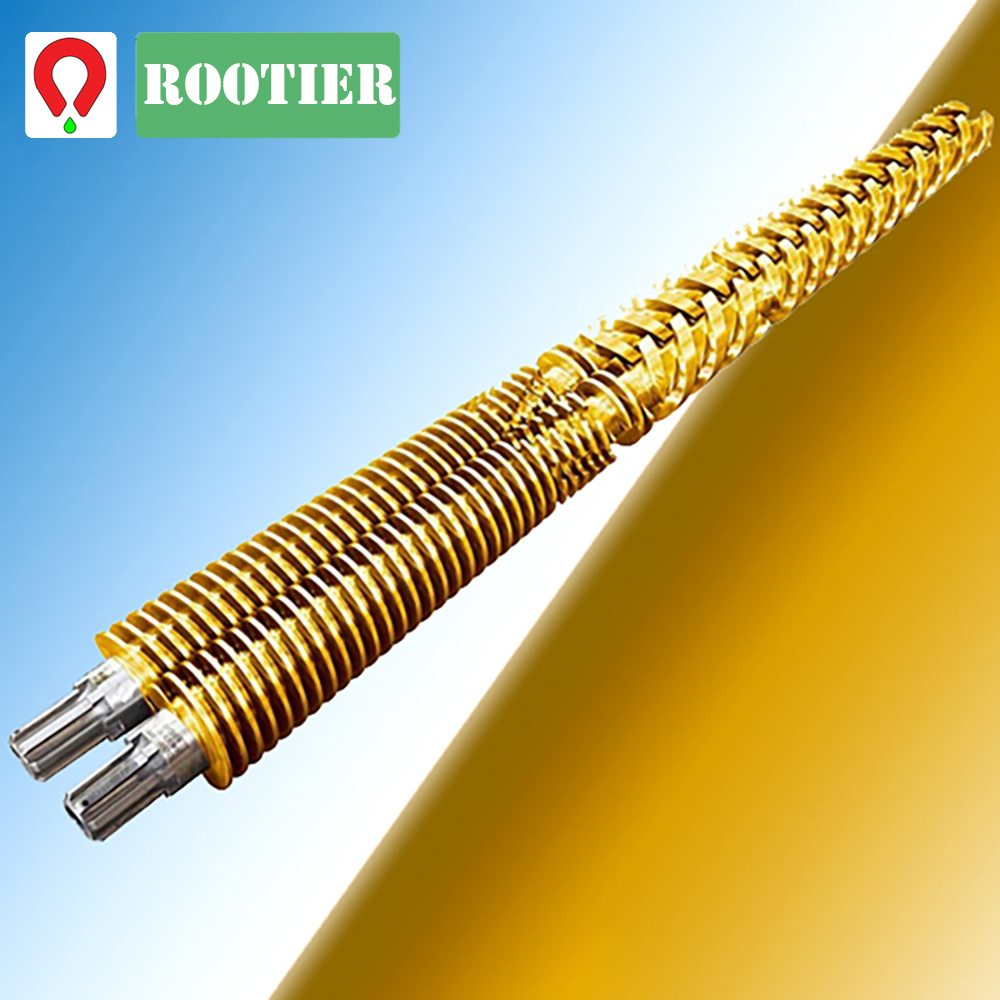

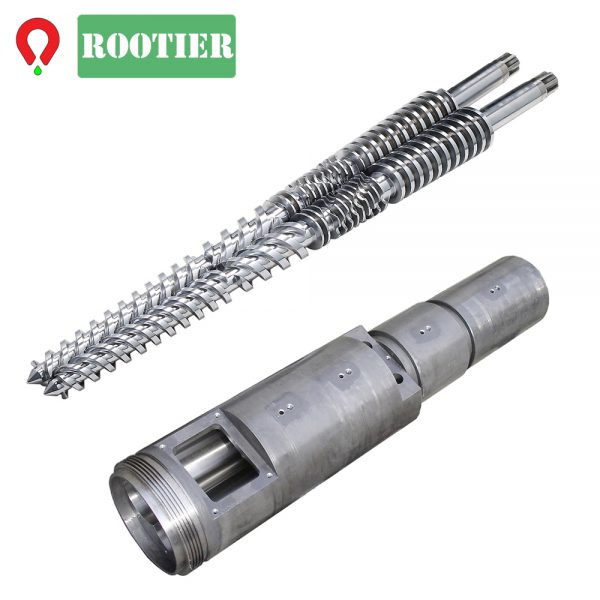

Twin Conical Screw Barrel for Extruder Machine
Specification: SJZ-30/75-110/220
Grade: Bimetallic
Suitable Polymer: PVC
Material: 38CrMoAlA, SKD61, DC53
Output: 100-1000kg/hr
HS Code: 84779000
| Conical Screw Barrel Nominal Size Selection (Ref.) | ||||
| Model | Power (KW) | Speed (RPM) | Output (KG/H) | Appliance |
| 35/75 | 12 | 5-50 | 40-70 | PVC Pipe PVC Profle PVC Sheet PVC Board PVC Recycling PE Pipe |
| 45/90 | 15 | 5-45 | 50-80 | |
| 45/100 | 15 | 5-45 | 60-90 | |
| 48/112 | 18.5 | 5-45 | 70-100 | |
| 51/105 | 18.5 | 4-40 | 100-150 | |
| 55/110 | 22 | 4-40 | 120-180 | |
| 55/120 | 22 | 4-40 | 130-180 | |
| 60/125 | 25 | 4-40 | 150-200 | |
| 65/132 | 30 | 4-40 | 200-300 | |
| 68/146 | 35 | 4-40 | 220-300 | |
| 80/143 | 55 | 4-35 | 350-450 | |
| 80/156 | 55 | 4-35 | 350-450 | |
| 92/188 | 110 | 4-35 | 650-900 | |
| 110/220 | 160 | 43951 | 950-1400 | |
